What is a fuse and its use?

-

Introduction:

A fuse is a crucial electrical component designed to protect electrical circuits and devices from overcurrent conditions. It acts as a safety mechanism by interrupting the flow of current when it exceeds a predetermined threshold, preventing damage to equipment and potential fire hazards. Fuses come in various types and sizes, but their fundamental purpose remains consistent across different applications.

Structure and Composition:

  • Fuse Element: The core of a fuse is its conductive element, typically made of a metal or alloy with a low melting point. This element is positioned within the fuse and conducts electricity under normal conditions.

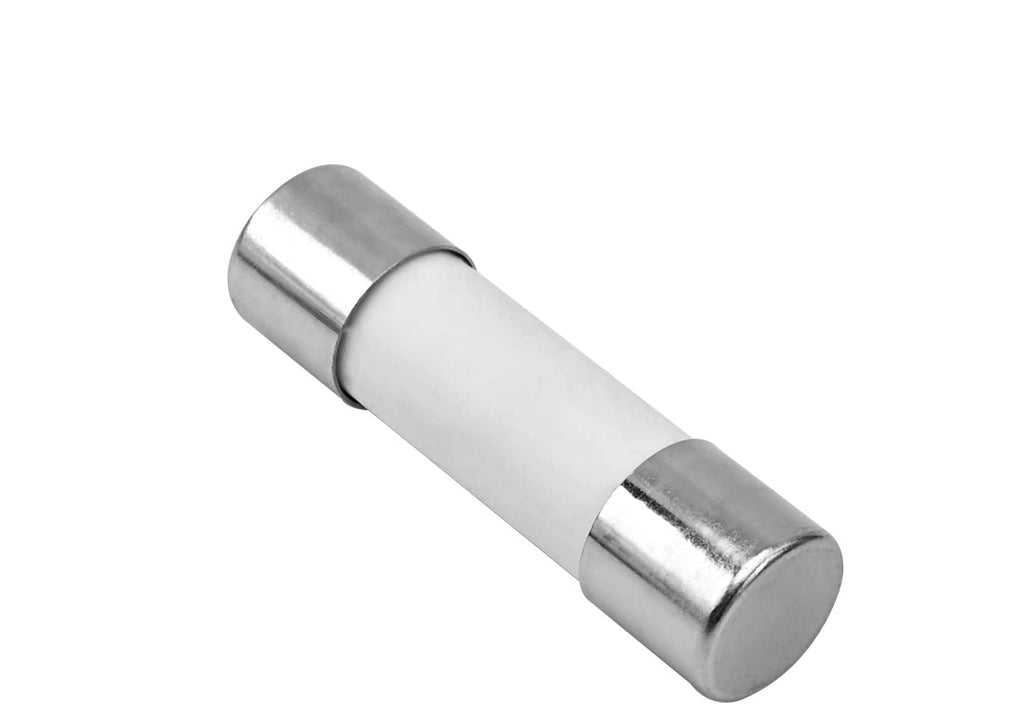

  • Fuse Housing: Fuses are encased in a protective housing, often made of ceramic or glass, which contains and insulates the fuse element.

Functionality:

  • Overcurrent Protection: The primary role of a fuse is to safeguard electrical circuits from overcurrent situations. When the current surpasses the rated value, the heat generated causes the fuse element to melt or blow, breaking the circuit and stopping the flow of electricity.
  • Fault Isolation: Fuses help isolate faults in electrical systems by interrupting the current flow. This prevents the fault from spreading and causing further damage to connected devices.
  • Fire Prevention: By disconnecting the circuit during overcurrent events, fuses contribute significantly to fire prevention. They limit the risk of overheating and subsequent electrical fires.

Types of Fuses:

  • Fast-Blow: These fuses respond rapidly to overcurrent conditions and are commonly used in electronic devices and equipment.
  • Slow-Blow: Slow-blow fuses tolerate temporary overloads and are suitable for applications where inrush currents are common, such as in motors and transformers.

Applications:

  • Automotive: Fuses are extensively used in vehicles to protect electrical systems from short circuits and overloads.
  • Residential: In homes, fuses are employed in electrical panels to safeguard household circuits and appliances.
  • Industrial: Industries rely on fuses to protect machinery and equipment from electrical faults.

Conclusion:

Fuse play a crucial role in maintaining electrical safety by preventing damage to equipment and minimizing the risk of electrical fires. Their versatility and widespread use across various applications underscore their importance in ensuring reliable and secure electrical systems.
