What is a digital multimeter & How to use a multimeter?

-

Understanding Digital Multimeters

A digital multimeter (DMM) is a versatile electronic measuring instrument that combines several measurement functions in one unit. It is an essential tool for engineers, technicians, electricians, and hobbyists to troubleshoot and measure various electrical parameters. Digital multimeters have largely replaced analog multimeters due to their higher precision, accuracy, and ease of use.

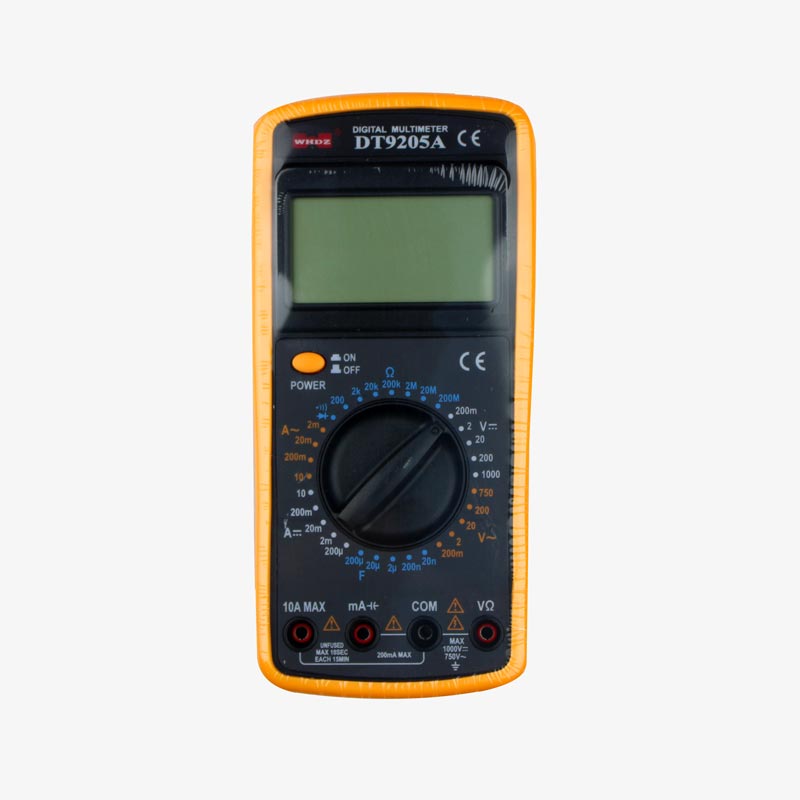

Components of a Digital Multimeter

1. Display Screen:

  • The digital multimeter features a digital display screen that provides a clear readout of the measured values. The screen typically shows numerical values along with units such as volts (V), amperes (A), and ohms (Ω).

2. Selection Knob:

  • The selection knob allows users to choose the desired measurement function, such as voltage, current, resistance, and continuity. It also includes settings for diode testing and capacitance measurement.

3. Input Jacks:

  • A digital multimeter typically has input jacks labeled as COM (common), VΩmA (for voltage, resistance, and current measurements), and specific jacks for different measurement functions.

4. Function Buttons:

  • Some multimeters come equipped with additional function buttons, enabling features like data hold, range selection, and backlight activation for better visibility in low-light conditions.

How to Use a Digital Multimeter

1. Safety First:

  • Before using a multimeter, ensure that it is in good working condition and the test leads are not damaged. Always follow safety precautions, such as wearing appropriate personal protective equipment, especially when working with high voltage.

2. Select the Measurement Type:

  • Turn the selection knob to the desired measurement function (voltage, current, resistance, etc.). Choose an appropriate range for the expected value to ensure accurate readings.

3. Connect the Test Leads:

  • For voltage and resistance measurements, insert the red lead into the VΩmA jack and the black lead into the COM jack. For current measurements, move the red lead to the 10A jack. Ensure the power is off before connecting the leads to the circuit.

4. Voltage Measurement:

  • Connect the leads across the components or circuit you want to measure. Read the voltage value on the display. If the voltage is unknown, start with a higher range and gradually reduce it until an accurate reading is obtained.

5. Current Measurement:

  • To measure current, break the circuit and connect the multimeter in series with the load. Ensure the multimeter is set to the appropriate current range. Be cautious not to exceed the current limit of the selected range.

6. Resistance Measurement:

  • Disconnect the power source and ensure the component under test is not powered. Connect the leads to the component and read the resistance value on the display. If the resistance is unknown, start with a higher range.

7. Continuity Testing:

  • For continuity testing, set the multimeter to the continuity function (usually denoted by a diode symbol). Touch the test leads across the points being tested. If there is continuity, the multimeter will emit a beep.

8. Diode Testing:

  • Set the multimeter to the diode testing function. Connect the leads to the diode, observing the polarity. The multimeter will display the forward voltage drop of the diode.

9. Capacitance Measurement:

  • For capacitance measurements, select the capacitance function and connect the leads to the capacitor. The multimeter will display the capacitance value.

10. Data Hold and Backlight:

  • Use additional function buttons for features like data hold to freeze the displayed value and backlight for better visibility in low-light environments.

By following these steps and understanding the key components of a digital multimeter, users can effectively measure various electrical parameters and troubleshoot circuits with confidence and precision. Always consult the multimeter's manual for specific instructions and safety guidelines.

What are the Types of Digital multimeters?

Digital multimeters (DMMs) come in various types and models, each designed for specific applications and user requirements. The main types of digital multimeters include:

Handheld Digital Multimeters:

  • These are the most common and versatile types of DMMs. They are portable, battery-operated devices with a wide range of measurement functions, making them suitable for fieldwork, troubleshooting, and general-purpose electrical testing.

Benchtop Digital Multimeters:

  • Benchtop DMMs are larger, more feature-rich instruments designed for use in laboratories, workshops, and other fixed locations. They often have a larger display, more measurement options, and increased accuracy compared to handheld models.

Clamp Meters:

  • Also known as clamp-on meters, these DMMs are specialized for measuring electrical current without the need to disconnect the circuit. They have jaws that can be clamped around a conductor, making them convenient for measuring current in live circuits.

Autoranging Digital Multimeters:

  • Autoranging DMMs automatically select the appropriate measurement range based on the input signal. This feature simplifies the measurement process for users, especially those who may not be familiar with the expected value range.

True RMS Digital Multimeters:

  • True RMS (Root Mean Square) multimeters are designed to provide accurate measurements of both sinusoidal and non-sinusoidal waveforms. Standard multimeters assume a sinusoidal waveform, but true RMS meters account for distorted or irregular waveforms, providing more accurate readings in real-world conditions.

Logging or Data Logging Multimeters:

  • These DMMs are equipped with data logging capabilities, allowing them to record and store measurement data over time. This is particularly useful for monitoring and analyzing trends in electrical parameters.

HVAC Digital Multimeters:

  • HVAC (Heating, Ventilation, and Air Conditioning) multimeters are tailored for technicians working in the HVAC industry. They often include specialized features for measuring temperature, capacitance, and frequency, in addition to standard electrical measurements.

Compact or Pocket-Sized Digital Multimeters:

  • These multimeters are designed for portability and convenience. They are smaller in size and often lack some of the advanced features found in larger models but are ideal for quick measurements in tight spaces.

Industrial-Grade Digital Multimeters:

  • Industrial-grade DMMs are ruggedized for use in harsh environments. They may have additional protective features such as reinforced casings, protective holster, and increased resistance to dust and moisture.

Bluetooth-Enabled Digital Multimeters:

  • Some modern DMMs come equipped with Bluetooth connectivity, allowing users to wirelessly transfer measurement data to smartphones or tablets. This feature enhances convenience and enables remote monitoring and control.

When selecting a digital multimeter, it's important to consider the specific requirements of the intended application, the level of accuracy needed, and any additional features that may improve efficiency and ease of use. Different types of DMMs cater to a wide range of users and applications, ensuring that there's a suitable option for various electrical measurement needs.
